手动平行光曝光机

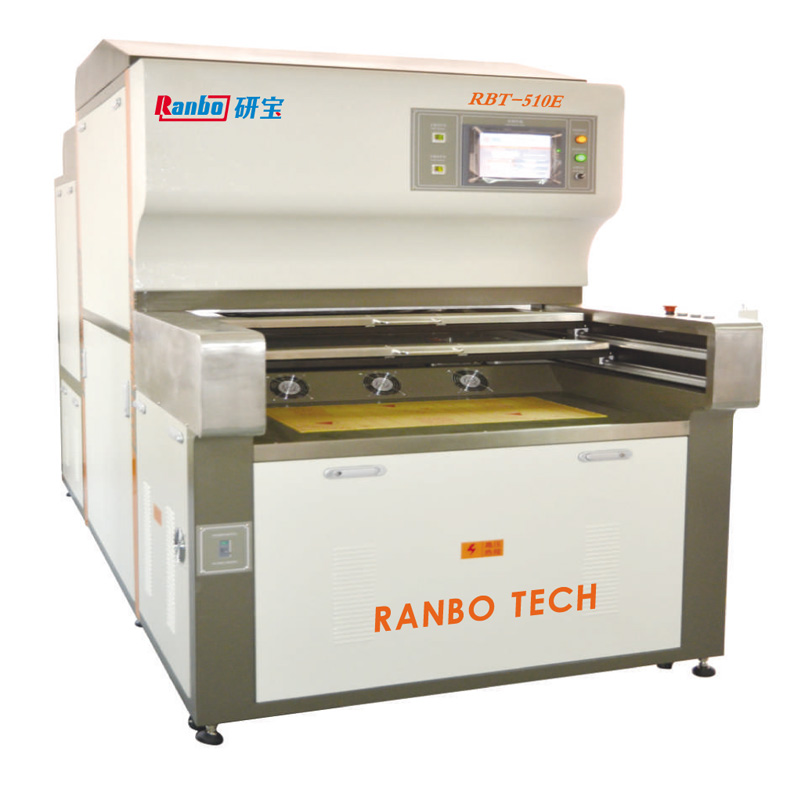

RBT-510E平行光曝光机,拥有全新专业版高精配置,采用新一代高照度短弧5KW灯管,能量强且有效曝光范围光均度高达85%以上...
RBT-510E平行光曝光机,拥有全新专业版高精配置,采用新一代高照度短弧5KW灯管,能量强且有效曝光范围光均度高达85%以上;同时新一代多复眼设计,积光效率更高;配合日本原装电子式点灯器,稳压性高,低噪音;充分冷却系统及人性化的异常警报系统,备受高端用户的青睐。
Features特性 :
★专业化的新一代高照度短弧5KW灯管,曝光能量增强
★全新款的专业配置日本原装电子式点灯器,稳压性高,低噪音
★设备产能及消耗材料自动记录、方便管理和统计生产成本
★人性化的全面异常警报系统、保障机器使用过程安全无忧
★操作介面采用触控式萤幕,配合PLC作业,交谈式互动、简单易学易操作
★高效率系统控制功能,如有任何故障情形均由曝光系统故障画面查看确认
1.PLC with LCD touch screen, easy to operate
2.Overall abnormal sensor, insure exposure volume
3.Total UV integrate sensor, insure exposure volume
4.Precision UV measurement of exposure frame. upper and lower frame exposure are evenly
5.Production capacity and consumption material autographic record, convenience administration and statistics cost of production
6.Exposal frame equips with high-power air conditioning thermostatic control, ensure line precisely.
规格(mm):Specifications
Features特性 :
★专业化的新一代高照度短弧5KW灯管,曝光能量增强
★全新款的专业配置日本原装电子式点灯器,稳压性高,低噪音
★设备产能及消耗材料自动记录、方便管理和统计生产成本
★人性化的全面异常警报系统、保障机器使用过程安全无忧
★操作介面采用触控式萤幕,配合PLC作业,交谈式互动、简单易学易操作
★高效率系统控制功能,如有任何故障情形均由曝光系统故障画面查看确认
1.PLC with LCD touch screen, easy to operate
2.Overall abnormal sensor, insure exposure volume
3.Total UV integrate sensor, insure exposure volume
4.Precision UV measurement of exposure frame. upper and lower frame exposure are evenly
5.Production capacity and consumption material autographic record, convenience administration and statistics cost of production
6.Exposal frame equips with high-power air conditioning thermostatic control, ensure line precisely.
规格(mm):Specifications
电 源Power | AC380V 3Φ 50/60Hz 100A 20KVA |
光源Lamp | 5千瓦*1 汞氙短弧灯/5KW*1,Mercury-xenon&LED Lamp |
有效曝光面积/Exposure | 22mm * 24mm&24mm*27mm |
灯管冷却方式/Lamp cooling method | 外部强制抽风冷却/ High-peep air |
曝光方式/Exposure method | 双面双台框曝光(可选配):压克力vs. Glass; Mylar vs Glass/ Acrylic .vs. Glass; Mylar vs Glass |
整体温度控制/integrate temperature control | 外接水散热恒温控制 External water thermostatic control |
机械尺寸(长*宽*高)/Dimension(L*W*H) | 3210mm*1360mm*2350mm |
净重/Net weight | 1750kg |
环境要求/Clean Room | 置机空间21℃±4℃;55%±5%,/ Clean Room :21℃±4℃;55%±5% RH |
